Original price was: $47.52.$33.26Current price is: $33.26.
- Experience the Best Quality
- Quality Products, Quality Service
- Guaranteed High Quality
- Free Shipping, Quality Goods

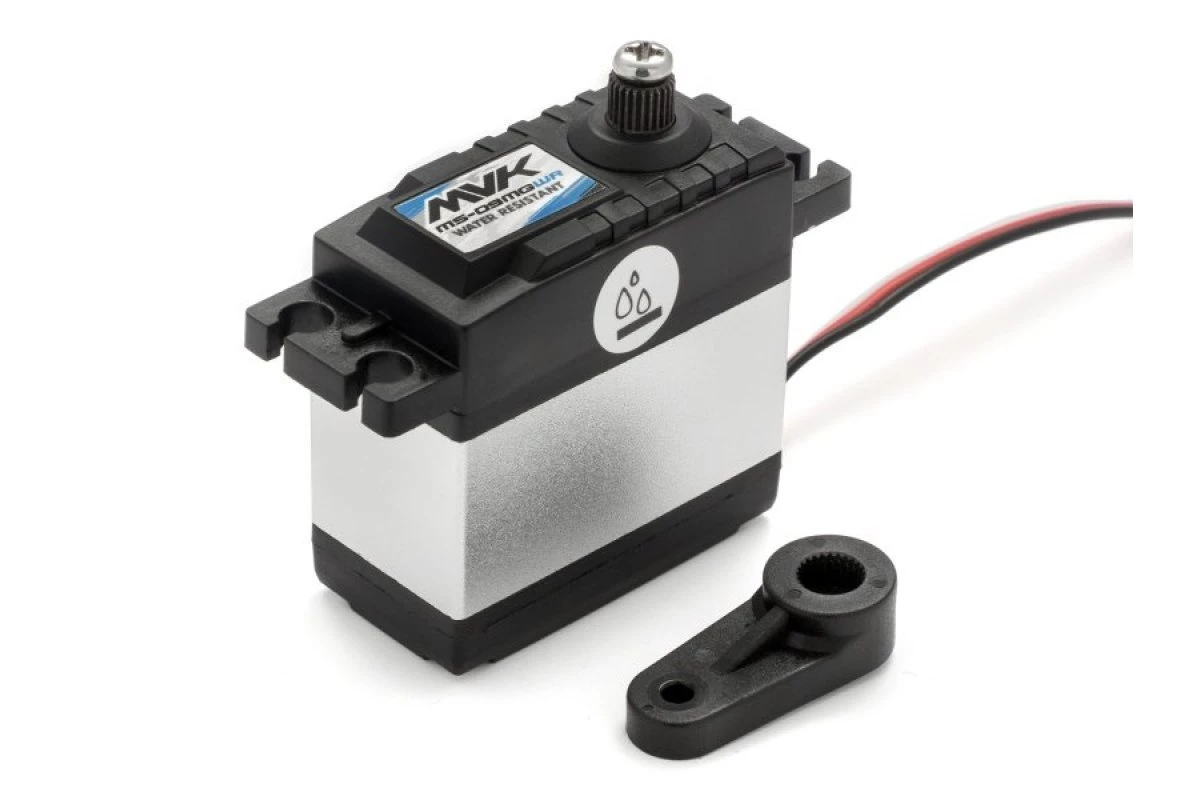

This water-resistant servo is ideal for bashers and racers looking for a tough and durable servo that can be used in wet conditions (e.g. rain, snow, puddles).
- Operating Voltage: 6v
- Speed: 0.25 sec/60 degrees
- Torque: 8.5kg-cm
- Servo Spline: 25T
- Weight 58g
| Description | QTY |
|---|---|
| MS-09MGWR Standard Brushed 9kg 6v Metal Geared Servo w/ Horn | 1 |
 Servos are powered by the ESC’s output to the receiver. If you’re using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience ‘brown-outs’ where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
- Total Height (A) = 46.5mm
- Body Width (B) = 40mm
- Below Mount (C) = 31.5mm
- Above Mount (D) = 15mm
- Total Length (E) = 55mm
- Total Width (F) = 20mm
Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.
Specifications
| Servo | |
|---|---|
| Servo Size: | Standard |
| Servo Spline Count: | 25 |
| Waterproof Casing: | Splash Proof |
| Gear Material: | Metal |
| Torque kg/cm: | 9 |
| Signal Type: | Digital |
| 6.0v Sec/60 Degrees: | 0.25 |
| “A” Measurement: | 46.5 |
| “B” Measurement: | 40 |
| “C” Measurement: | 31.5 |
| “D” Measurement: | 15 |
| “E” Measurement: | 55 |
| “F” Measurement: | 20 |
